High Air Pressure SRC54 RC Reverse Circulation Hammer with 130mm Diameter and 84.5kg Weight for Efficient RC Drilling

Name: High Air Pressure SRC54 RC Reverse Circulation Hammer with 130mm Diameter and 845kg Weight for Efficient RC Drilling
Brand: Sollroc
Price: 1 USD

Quality High Air Pressure SRC54 RC Reverse Circulation Hammer with 130mm Diameter and 84.5kg Weight for Efficient RC Drilling for sale

Place of Origin : Hunan, China

Brand Name : Sollroc

MOQ : 1

Price : $1,500

Weight : 84.5kg

Diameter : 130mm

Length : 1294mm

Thread type : Remet / Metzke

Hole range : 135-152mm

Bit Shank : SRC54/SRC54R

Working Pressure : 1.5-3.5Mpa

Impact rate : 35Hz

Rotation speed : 25-40r/min

Air consumption : 16m3/min at 1.7Mpa, 22m3/min at 2.4Mpa, 28m3/min at 3.0Mpa

Material : Carburized steel

Max depth : 500 metres

Connection thread : 4.5'' Remet / 4.5'' Metzke

Drilling method : Reverse circulation

Sample collection : Compressed air

Contact Now

Product Description

The reverse circulation drilling method has the capability of reaching depths of 500 metres. A pneumatic hammer-like device is used to hammer into the earth to remove rock samples which are then pushed up into the mining machine using compressed air. The samples are collected in a sample bag which is located within the machine. More than one sample bag can be collected which allows for more of a variety of samples to be analysed. Sample bags are usually marked to show the location from which the sample was taken as well as the depth from which the samples are extracted.

Product Features

1. Although the process can be costly the overall drilling costs can actually be reduced by up to 40% when using reverse circulation drilling.

2. Results from reverse circulation drilling can be revealed much faster as the completion of the drilling process is done quickly.

3. The method is safe to use and requires fewer man hours.

4. Reverse circulation drilling requires less water than other mining methods.

5. Reverse circulation drilling is simple and easy.

6. Samples can be easily arranged into boxes stating where the sample was collected and at what depth the sample was collected which will help those studying the samples to pinpoint exactly where the mineral deposit is located. This will help a mining company or a group of researchers to quickly and easily locate the exact area and depth from which the sample was discovered.

Technical Parameter

Length(Without bit)	Weight (Without bit)	External diameter	Bit Shank	Hole range	Connection thread
1294mm	84.5kg	130mm	SRC54/SRC54R	135-150	4.5'' Remet 4.5''Metzke
Working Pressure	Impact rate at 2.4Mpa	Recommended rotation speed		Air consumption
1.5-3.5Mpa	35Hz	25-40r/min		1.7Mpa	2.4Mpa	3.0Mpa
1.5-3.5Mpa	35Hz	25-40r/min		16m³/min	22m³/min	28m³/min

About us

Our hammer and bits are made of high quality alloy steel with advanced heat treatment to assure the good drilling performance and long service life. They are widely used by our customers all over the world.

All the products are manufactured as per the international standard.

Delivery & Package

Delivery: By air ,By sea or By Express

High Air Pressure SRC54 RC Reverse Circulation Hammer with 130mm Diameter and 84.5kg Weight for Efficient RC Drilling

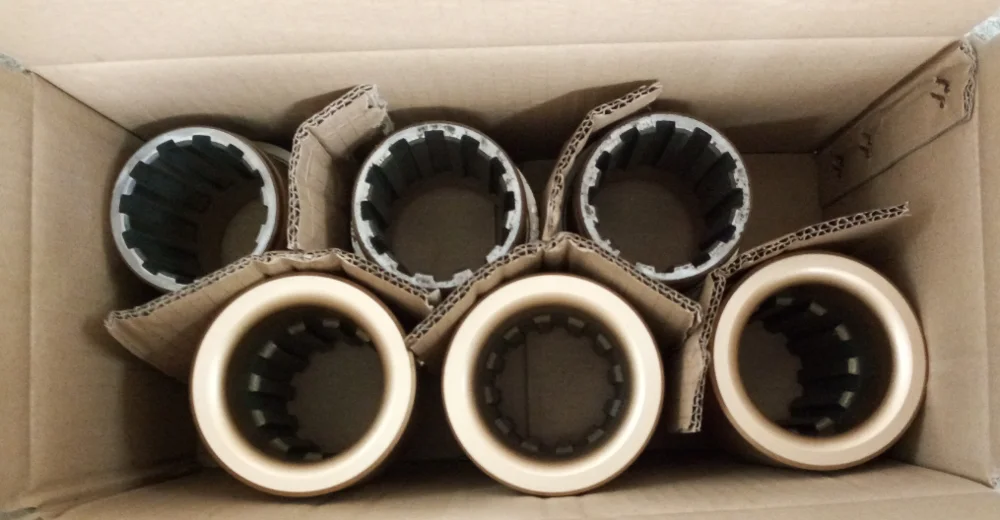

carton

Ply-wooden cases + Pallet

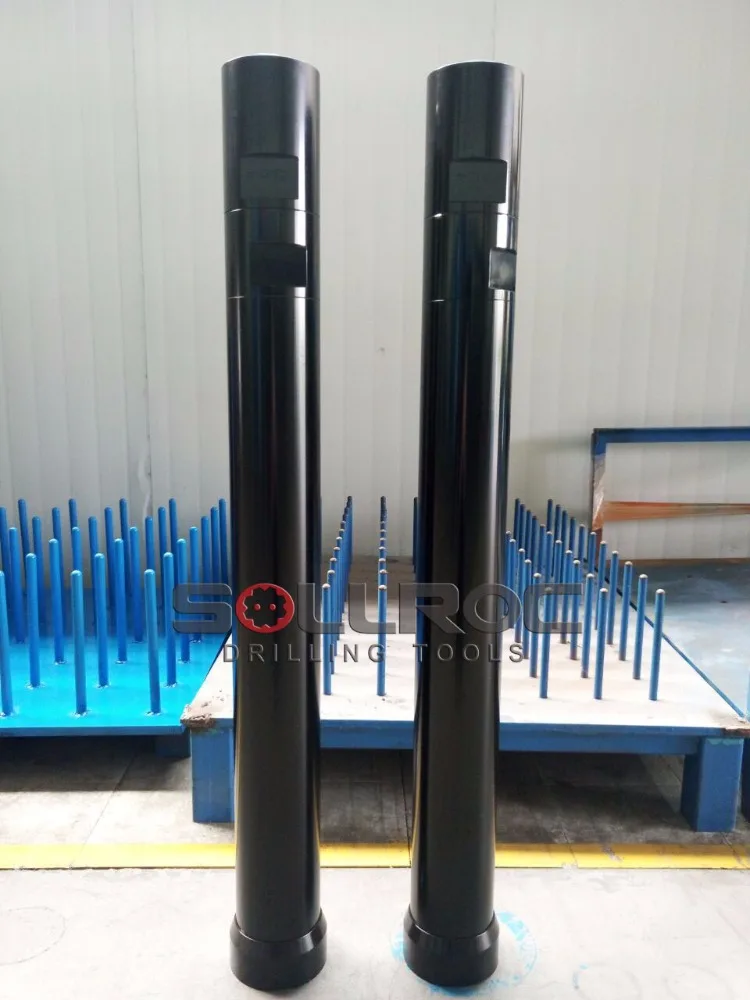

Product Picture
